Morphological and molecular differentiation of genus Corbicula suggests that two species are sympatrically distributed in Datong Lake in the Central Yangtze River Basin
© Wang et al.; licensee Springer. 2014
Received: 26 May 2014
Accepted: 2 September 2014
Published: 11 September 2014
White and purple color morphs of Corbicula have been identified all over the world. Previous studies suggested that the distinct difference of inner shell color, especially for sympatric individuals, derived mainly from their different genetic constitutions, not just environmental conditions. Two color morphs of Corbicula sympatric in Datong Lake were compared by both morphometric methods (shell length, shell height, and shell width) and genetic analysis (based on the mitochondrial cytochrome c oxidase subunit I gene COI-mtCOI) to explore their taxonomic relationship.
Morphological analysis showed that there were no significant differences in the values of SH/SL, SW/SL, and SW/SH (P > 0.05) between the two color morphs. Meanwhile, there were no significant differences in measurable parameters among the four mitochondrial COI haplotypes (DT-1, DT-7, DT-19, and DT-31) (P > 0.05). The sequences of four haplotypes (DT-1, DT-7, DT-19, and DT-31) were identical to FW1, FW5, FW4, and FW3, respectively. Restriction fragment length polymorphism (RFLP) analysis showed that only the sequences of haplotype DT-7 could be digested by the restriction enzyme Sac I into two fragments with 200/500 bp. Haplotype DT-31 was found only in one individual (white morph), while each of the other three haplotypes shared with both two color morphs. Phylogenetic analysis demonstrated that the four haplotypes were subdivided into two divergent clades among freshwater clades, and haplotype DT-7 was a divergent sister taxon to the other three.
The results indicated that there were no distinct differences on morphological measures between the two color morphs, and each color morph shared with all four mitochondrial COI haplotypes. Two species (DT-7 referred as Corbicula fluminea and DT-1, DT-19, and DT-31 as Corbicula leana) might coexisted in the Datong Lake. Therefore, a comprehensive study combining nuclear and mitochondrial data along with biological information should be performed to confirm this assumption.
KeywordsCorbicula Mitochondrial DNA COI Phylogeny Taxonomy
At the beginning of the 20th century, the modern native distribution of the genus Corbicula was confined in Asia, Africa, and Australia (Sousa et al. ). Corbicula has been dispersed worldwide rapidly by a combination of human and natural dispersion mechanisms (Araujo et al. ; Sousa et al. ). The first documented record of this genus outside its native range was in British Columbia in Canada in the 1920s (Counts ) and then rapidly spread throughout the continent. Afterwards, it was extended to South America in the 1970s (Lee et al. ; Pigneur et al. ) and Europe in the 1980s (Karatayev et al. ). Nowadays, the genus Corbicula has colonized almost all over the world (Renard et al. ; Pfenninger et al. ), which caused great ecological and economic impacts on introduced ecosystems in the invasive range. Although its invasion and rapid expansion have been of intensive research topic in freshwater ecology, the taxonomy and systematic status of freshwater clam Corbicula in its native range is still not clearly resolved (Park and Kim ). Several systematic uncertainties using molecular methods were clarified in the last decades, such as mitochondrial and nuclear marks (Hedtke et al. ; Komaru et al. , ). However, it still remained confusing, mainly due to the polymorphism of the morphology, color of the shell, and complex reproduction modes. Therefore, more information on genus Corbicula in its native range will help solve this confusion.
In China, the genus Corbicula has been consumed as food since ancient times (Liao et al. ). In addition, it has also been explored for medicine with its pharmacological activity (Liu et al. ). However, the taxonomy and systematicness of the genus Corbicula were poorly understood. Seven species have been reported in China, including Corbicula fluminea, Corbicula fluminalis, Corbicula nitens, Corbicula aurea, Corbicula largillierti, Corbicula tenuis, and Corbicula scholastica, which were nominated mainly according to morphology (Tchange and Li ; Tchange et al. ; Huang and Cheng ). It is not clear if the same occurs just like in America and Europe.
The shell color of the genus Corbicula was highly polymorphic (Morton ). Generally, two different color morphs (white and purple) have been identified by significantly different dimension ratios (Hillis and Patton ; Tsoi et al. ; Park et al. ). These two morphs were usually nominated to be one (Morton ; Qiu et al. ) or two different species (Britton and Morton ; Morton ; Park et al. ). It was inferred that the differences between the shell color morphs of Corbicula mainly derived from their different genetic constitutions, not just environmental condition, especially for those sympatric individuals (Komura and Konishi ; Qiu et al. ; Park et al. ). In the present study, two shell color morphs (white and purple) of the genus Corbicula were discovered sympatrically in an aquaculture lake (Datong Lake) in the Central Yangtze River Basin. A combination of morphological methods (shell length (SL), shell height (SH), and shell width (SW)) and genetic analysis (based on the mitochondrial cytochrome c oxidase subunit I gene COI-mtCOI) were used to explore their systematic relationship. In addition, mtCOI sequences of individuals in the present study were compared with preexisting mtCOI sequences in China. The results will provide more valuable information to clarify the taxonomy and systematicness of the genus Corbicula.
2.1 Study area and sampling
2.2 Morphological analysis and statistics
For conventional morphometric analysis, three morphometric variables in 60 individuals were measured after wet weight (WW) was taken: shell length (the greatest anteroposterior dimension), shell height (the maximal dorsoventral dimension of the shell taken at the umbo), and shell width (the maximal width of the articulated paired valves) (Li et al. ). The accuracy of weighing was 0.01 g, and the morphological variable was 0.01 mm using a digital caliper.
All values were presented as means ± SE. All data were tested by using Shapiro-Wilk's W test for normality, while using Levene's test for homogeneity of variances. Differences between two shell morphs were compared by t-test. Differences among haplotypes were analyzed using one-way ANOVA. All analyses were performed using Statistic 6.0 software (StatSoft, Inc., Tulsa, OK, USA), with P < 0.05 considered statistically significant.
2.3 Genetic analysis
Genomic DNA was extracted from the mantle tissue of 60 individuals using TIANamp Marine Animals DNA Kit (Tiangen Biotech (Beijing) Co., Ltd., Beijing, China). A 710-bp fragment of the mitochondrial cytochrome c oxidase subunit I gene (COI) was amplified using the primers LCO1490 (5′-GGTCAACAAATCATAAAGATATTGG-3′) and HCO2198 (5′-TAAACTTCAGGGTGACCAAAAAATCA-3′) designed by Folmer et al. (). Polymerase chain reaction (PCR) was performed in 25 μl, including 100 ng of template DNA, 0.5 μM of each primer, 2.5 μM of each dNTP, 1.5 mM MgCl2, 1× Taq reaction buffer, 2.5 U of Taq polymerase, and ddH2O. The PCR conditions were as follows: following initial denaturation of 5 min at 94°C, 35 cycles of denaturation at 94°C for 60 s, annealing at 52°C for 45 s, and extension at 72°C for 1 min, followed by a final extension for 5 min at 72°C were done. A negative control reaction (no template DNA) was performed alongside the experimental PCR. The PCR products were purified using a TIANgel Midi Purification Kit (Tiangen Biotech (Beijing) Co., Ltd., Beijing, China) and sequenced with each of the same primers by Sangon Biotech (Shanghai) Co., Ltd. (Shanghai, China). In order to avoid erroneous sequence determination at the 5′- and 3′-terminal regions, only a 614-bp fragment was selected for further phylogenetic analysis. The PCR products of the four haplotypes were digested with a restriction enzyme Sac I. The digestion reaction was performed according to the procedures provided by the enzyme supplier (Fermentas Inc., Burlington, Ontario, Canada).
The haplotype sequences in the Datong Lake were identified by comparing with those from previously published studies on Corbicula using the BLAST program (Altschul et al. ): FW1 (GenBank, AF196269), FW2 (AF457989), FW3 (AF457990), FW5 (AF196268), FW11 (AF457994), FW12 (AF457995), FW13 (AF457999), and FW4 (AF269096-8). The sequences were visualized and aligned using BioEdit 126.96.36.199 software. Haplotypes were determined using the DnaSP program (Rozas et al. ). MEGA version 5.1 software was employed for the construction of the neighbor-joining (NJ) tree and maximum likelihood (ML) tree, estimating genetic distances according to Tamura () 3′ parameters method. Two published sequences of Zebra mussels (U47648 and U47652) were designed as outgroups. The reliability of nodes on trees was obtained using bootstrap analysis with 1,000 replicates (Felsenstein ; Sousa et al. ).
3.1 Shell morphology
Morphometric data of the shells of Corbicula clams from Datong Lake, with mitochondrial COI haplotypes
2.93 ± 0.23
19.39 ± 0.48
18.26 ± 0.43
12.61 ± 0.27
0.94 ± 0.01
0.65 ± 0.01
0.69 ± 0.01
2.78 ± 0.29
18.57 ± 0.69
17.88 ± 0.65
12.53 ± 0.39
0.96 ± 0.01
0.68 ± 0.01
0.70 ± 0.01
2.93 ± 0.62
18.88 ± 1.75
18.01 ± 1.56
12.28 ± 1.09
0.96 ± 0.02
0.65 ± 0.02
0.68 ± 0.01
3.2 Genetic variability
Two shell color morphs of Corbicula clam have already been described from a number of regional populations, such as North America (Hillis and Patton ; Siripattrawan et al. ), Japan (Houki et al. ), Thailand (Kijviriya et al. ), Hong Kong (Tsoi et al. ), Taiwan (Komura and Konishi ), and China (Qiu et al. ). It was inferred that not only environmental condition but also the different genetic constitutions resulted in the differences between the two color morphs (Qiu et al. ), especially for those sympatric individuals. Most researchers have reached an agreement that the two morphotypes should be relegated to two separate species, for C. fluminea (white morph) and C. leana (purple morph) (Choe et al. ; Kwon et al. ; Park et al. ). In Datong Lake, two sympatric shell color morphs were generally to be identified as C. fluminea on account of their similar external shell morphology (Li et al. , ). Similar results of C. fluminea have also been reported in Sichuan Province, China (Qiu et al. ). Morphological analysis in the present study further supported that there were no significant differences between the two color morphs except for their different internal color in Datong Lake. This was inconsistent with that in Sichuan Province (Qiu et al. ), in which the three ratios of SW/SL, SW/SH, and SW/(SL + SH + SW) were significantly larger in white morph than in purple morph. Therefore, these results supported the assumption that the origin of differences between two color morphs should have been derived from genetic constitutions.

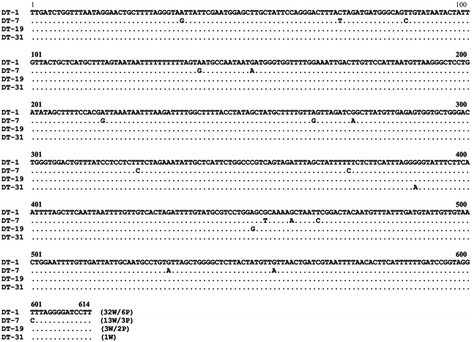

DNA sequencing analysis revealed four distinct haplotypes in 60 individuals in Datong Lake. No novel haplotype was discovered, comparing with those available sequences in Asia including the two largest freshwater lakes of China (Poyang Lake and Dongting Lake) (Park and Kim ). Because Datong Lake was once part of Dongting Lake 60 years ago, the results may suggest that at least four haplotypes coexisted in the Dongting Lake not just three haplotypes reported previously (Park and Kim ). Nowadays, eight haplotypes have been identified, including FW1/DT-1, FW2, FW3/DT-31, FW4/DT-19, FW5/DT-7, FW11, FW12, and FW13. Therefore, more extensive samplings especially for species in Qingshan Lake which has novel haplotypes (FW11, FW12, and FW13) should be carried out to clarify the taxonomy and phylogeny of Corbicula in China. In addition, three major haplotypes (DT-1, DT-7, and DT-19) each was shared with both two color morphs. Thus, more individuals in Datong Lake should be analyzed to make sure whether it was true for DT-31. The genetic analysis based on phylogenic trees strongly supported the sister status of the estuarine clade to all its freshwater congeners, which was consistent with previous results (Park and Kim ; Pigneur et al. ). Among the freshwater clades, haplotype DT-7 was a divergent sister taxon to the other three, obviously supported by maximum bootstrap values (100%). In the present study, both of the haplotype DT-7 and FW5 (referred as C. leana in Japan) shared identical sequence, similar RFLP result, and robust support (a bootstrapping value of 100%). Hence, the individuals with haplotype DT-7 could be assigned as C. leana, which was one of the most common recorded freshwater system members in Asia. Accordingly, the individuals with haplotypes DT-1, DT-19, and DT-31 could be described as C. fluminea (FW1, FW3, and FW4 were referred to as C. fluminea). This assumption would also be supported by the minor significant differences in shell morphological characters between DT-7 and the group of haplotypes DT-1, DT-19, and DT-31.
Therefore, all results in the present study showed that two species (C. leana and C. fluminea) of genus Corbicula may coexisted in Datong Lake, and each species shared both two color morphs. This was significantly inconsistent with the previous results that the two morphotypes should be relegated to two separate species, for white morph C. fluminea and purple morph C. leana (Choe et al. ; Kwon et al. ; Park et al. ), or only to be identified as C. fluminea (Qiu et al. ; Li et al. ). However, this assumption should be confirmed further. As it was reported, most phylogenetic studies on Corbicula based on mitochondrial data could lead to inaccurate species delimitation because of mitochondrial/morphotype-nuclear mismatch (Pigneur et al. ). In addition, the special androgenesis and hermaphrodite characteristics that were recorded in most Corbicula species made the delineation of Corbicula even more complicated. Hence, a comprehensive study combining nuclear and mitochondrial data, along with morphology and biological information will do help to distinguish the taxonomy and systematic status of the two color morphs in further studies.
Two color morphs (white and purple) of Corbicula sympatric in Datong Lake were compared by morphometric methods and genetic analysis to explore their taxonomic relationship. The results showed that there were no distinct differences on morphological measures in the aspects of the two color morphs and the four mitochondrial COI haplotypes (DT-1, DT-7, DT-19, and DT-31). Each color morph was shared by all four mitochondrial COI haplotypes. Phylogenetic analysis demonstrated that the four haplotypes were subdivided into two divergent clades among freshwater clades, and haplotype DT-7 was a divergent sister taxon to the other three. Thus, two species (DT-7 as C. leana and DT-1, DT-19, and DT-31 as C. fluminea) may coexisted in Datong Lake. However, this assumption should be confirmed further because of the potential inaccurate species delimitation resulting from the mitochondrial/morphotype-nuclear mismatch in Corbicula genus.
This study was supported by the National Natural Science Foundation of China (31100282) and Special Fund for Agro-Scientific Research in the Public Interest (201303056–7).
- Altschul SF, Madden TL, Schäffer AA, Zhang J, Zhang Z, Miller W, Lipman DJ: Gappeb BLAST and PSI-BLAST: a new generation of protein database search programs. Nucleic Acids Res 1997, 25: 3389–3402. 10.1093/nar/25.17.3389PubMed CentralView ArticlePubMedGoogle Scholar
- Araujo R, Moreno D, Ramos MA: The Asiatic clam Corbicula fluminea (Müller, 1774) (Bivalvia: Corbiculidae) in Europe. Am Malac Bull 1993, 10: 39–49.Google Scholar
- Britton JC, Morton BS: Polymorphism in Corbicula fluminea (Bivalvia: Corbiculidae) from North America. Malacol Rev 1986, 19: 1–43.Google Scholar
- Choe BL, Park MS, Jeon LG, Park SR, Kim HT: Commercial mollusks from the freshwater and continental shelf in Korea. National Fisheries Research and Development Institute. Kudu Publishing Co., Pusan; 1999.Google Scholar
- Counts CL: Corbicula fluminea (Bivalvia: Corbiculidae) in British Columbia. Nautilus 1981, 95: 12–13.Google Scholar
- Felsenstein J: Confidence limits on phylogenies: an approach using the bootstrap. Evolution 1985, 39: 783–791. 10.2307/2408678View ArticleGoogle Scholar
- Folmer O, Black M, Hoeh E, Lutz R, Vrijenhoek R: DNA primers for amplification of mitochondrial cytochrome c oxidase subunit I from diverse metazoan invertebrates. Mol Mar Biol Biotechnol 1994, 3: 294–299.PubMedGoogle Scholar
- Hedtke SM, Stanger-Hall K, Baker RJ, Hillis DM: All-male asexuality: origin and maintenance of androgenesis in the Asian clam Corbicula . Evolution 2008, 62–5: 1119–1136. 10.1111/j.1558-5646.2008.00344.xView ArticleGoogle Scholar
- Hillis DM, Patton JC: Morphological and electrophoretic evidence for two species of Corbicula (Bivalvia: Corbiculidae) in North America. Am Midl Nat 1982, 108: 74–80. 10.2307/2425294View ArticleGoogle Scholar
- Houki SJ, Yamada MY, Honda T, Komaru A: Origin and possible role of males in hermaphroditic androgenetic Corbicula clams. Zoolog Sci 2011, 28: 526–531. 10.2108/zsj.28.526View ArticlePubMedGoogle Scholar
- Huang BY, Cheng LY: Bivalves in the Zhengyangguan part of the Huai River, Shou County, Anhui Province. Chin J Zool 2003, 23: 80–85.Google Scholar
- Karatayev AY, Padilla DK, Minchin D, Boltovskoy D, Burlakova LE: Changes in global economies and trade: the potential spread of exotic freshwater bivalves. Biol Invasions 2007, 9: 161–180. 10.1007/s10530-006-9013-9View ArticleGoogle Scholar
- Kijviriya V, Upatham ES, Woodruff DS: Genetic studies of Asian clams, Corbicula , in Thailand: allozymes of 21 nominal species are identical. Am Malac Bull 1991, 8: 97–106.Google Scholar
- Komaru A, Houki SJ, Yamada M, Miyake T, Obata M, Kawamura K: 28S rDNA haplotypes of males are distinct from those of androgenetic hermaphrodites in the clam Corbicula leana . Dev Genes Evol 2012, 222: 181–187. 10.1007/s00427-012-0395-7View ArticlePubMedGoogle Scholar
- Komaru A, Yamada M, Houki SJ: Relationship between two androgenetic clam species, Corbicula leana and Corbicula fluminea , inferred from mitochondrial cytochrome b and nuclear 28S rRNA markers. Zoolog Sci 2013, 30: 360–365. 10.2108/zsj.30.360View ArticlePubMedGoogle Scholar
- Komura A, Konishi K: Non-reduced spermatozoa in three color types of the freshwater clam Corbicula fluminea in Taiwan. Zoolog Sci 1999, 16: 105–108. 10.2108/zsj.16.105View ArticleGoogle Scholar
- Kwon OK, Min DK, Lee JR, Lee JS, Je JG, Choe BL: Korean Mollusks with Color Illustration. Hanguel Publishing Co., Pusan; 2001.Google Scholar
- Lee T, Siripattrawan S, Ituarte CF, Foighil DÓ: Invasion of the clonal clam: Corbicula lineages in the New World. Am Malac Bull 2005, 20: 113–122.Google Scholar
- Li DL, Zhang T, Yu JB, Mao XW, Wang HQ, Chen KJ, Liu AM, Li ZJ, Xiao TY: Temporal and spatial distributional patterns of mollusca in a typical aquaculture lake—Datong Lake. Acta Hydrobiol Sin 2011, 35: 946–954.Google Scholar
- Li DL, Zhang T, Xiao TY, Yu JB, Mao XW, Wang HQ, Chen KJ, Liu AM, Li ZJ: Phytoplankton’s community structure and its relationships with environmental factors in an aquaculture lake, Datong Lake of China. Chin J Appl Ecol 2012, 23: 2107–2113.Google Scholar
- Li DL, Zhang T, Xiao TY, Gong WB, Xie J, Li ZJ, Liu AM: Standing crops and temporal-spatial distribution of Corbicula fluminea (Müller, 1774) in Lake Datong, Hunan Province. J Lake Sci 2013, 25: 743–748.View ArticleGoogle Scholar
- Liao NB, Chen SG, Ye XQ, Zhong JJ, Wu N, Dong SL, Yang B, Liu DH: Antioxidant and anti-tumor activity of a polysaccharide from freshwater clam, Corbicula fluminea . Food Funct 2013, 4: 539–548. 10.1039/c2fo30178dView ArticlePubMedGoogle Scholar
- Liu YY, Zhang WZ, Wang YX, Wang EY: Freshwater Mollusk Economic Fauna of China. Science Press, Beijing; 1979.Google Scholar
- Morton BS: Corbicula in Asia—an updated synthesis. Am Malacol Bull Spec Ed 1986, 2: 113–124.Google Scholar
- Morton BS: Polymorphism in Corbicula fluminea (Bivalvia: Corbiculidae) from Hong Kong. Malac Rev 1987, 20: 105–127.Google Scholar
- Park JK, Kim W: Two Corbicula (Corbiculidae: Bivalvia) mitochondrial lineages are widely distributed in Asian freshwater environment. Mol Phylogenet Evol 2003, 29: 529–539. 10.1016/S1055-7903(03)00138-6View ArticlePubMedGoogle Scholar
- Park JK, Lee JS, Kim W: A single mitochondrial lineage is shared by morphologically and allozymatically distinct freshwater Corbicula clones. Mol Cells 2002, 14: 318–322.PubMedGoogle Scholar
- Pfenninger M, Reinhardt F, Streit B: Evidence for cryptic hybridization between different evolutionary lineages of the invasive clam genus Corbicula (Veneroida, Bivalvia). J Evol Biol 2002, 15: 818–829. 10.1046/j.1420-9101.2002.00440.xView ArticleGoogle Scholar
- Pigneur LM, Marescaux J, Roland K, Etoundi E, Descy JP, Doninck KV: Phylogeny and androgenesis in the invasive Corbicula clams (Bivalvia, Corbiculidae) in Western Europe. BMC Evol Biol 2011, 11: 147. 10.1186/1471-2148-11-147PubMed CentralView ArticlePubMedGoogle Scholar
- Qiu AD, Shi AJ, Komaru A: Yellow and brown shell color morphs of Corbicula fluminea (Bivalvia, Corbiculidae) from Sichuan Province, China, are triploids and tetraploids. J Shellfish Res 2001, 20: 323–328.Google Scholar
- Renard E, Bachmann V, Cariou ML, Moreteau JC: Morphological and molecular differentiation of invasive freshwater species of the genus Corbicula (Bivalvia, Corbiculidae) suggest the presence of three taxa in French rivers. Mol Ecol 2000, 9: 2009–2016. 10.1046/j.1365-294X.2000.01104.xView ArticlePubMedGoogle Scholar
- Rozas J, Sanchez-DelBarrio JC, Messeguer X, Rozas R: DnaSP, DNA polymorphism analyses by the coalescent and other methods. Bioinformatics 2003, 19: 2496–2497. 10.1093/bioinformatics/btg359View ArticlePubMedGoogle Scholar
- Siripattrawan S, Park JK, Foighil DÓ: Two lineages of the introduced Asian freshwater clam Corbicula occur in North American. J Moll Stud 2000, 66: 423–429. 10.1093/mollus/66.3.423View ArticleGoogle Scholar
- Sousa R, Freire R, Rufino M, Mendez J, Gaspar M, Antunes C, Guilhermino L: Genetic and shell morphological variability of the invasive bivalve Corbicula fluminea (Müller, 1774) in two Portuguese estuaries. Estuar Coast Shelf Sci 2007, 74: 166–174. 10.1016/j.ecss.2007.04.011View ArticleGoogle Scholar
- Sousa R, Antunes C, Guilhermino L: Ecology of the invasive Asian clam Corbicula fluminea (Müller, 1774) in aquatic ecosystems: an overview. Ann Limnol Int J Lim 2008, 44: 85–94. 10.1051/limn:2008017View ArticleGoogle Scholar
- Tamura K: The rate and pattern of nucleotide substitution in Drosophila mitochondrial DNA. Mol Biol Evol 1992, 9: 814–825.PubMedGoogle Scholar
- Tchange S, Li SC: Bivalves (Mollusca) of the Poyang Lake and surrounding waters, Kiangsi Province, China, with description of a new species. Acta Zool Sin 1965, 17: 309–317.Google Scholar
- Tchange S, Li SC, Liu YY: Bivalves (Mollusca) of Tung-ting Lake and its surrounding waters, Hunan Province, China. Acta Zool Sin 1965, 17: 197–217.Google Scholar
- Tsoi SCM, Lee SC, Wu WL, Morton B: Genetic variation in Corbicula fluminea (Bivalvia: Corbiculidae) from Hong Kong. Malac Rev 1991, 24: 25–34.Google Scholar
This article is published under license to BioMed Central Ltd. This is an Open Access article distributed under the terms of the Creative Commons Attribution License (http://creativecommons.org/licenses/by/4.0), which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly credited.
